Product Details

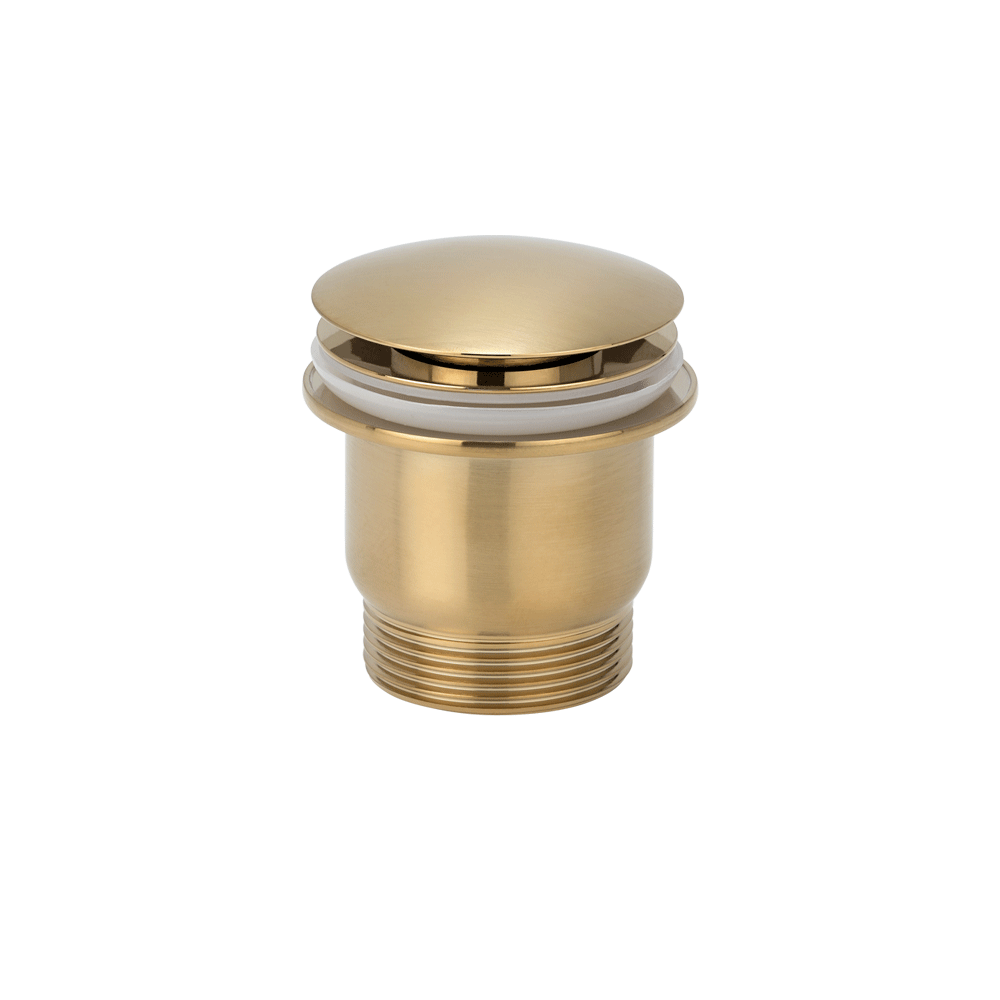

Your beautiful bathroom basin simply wouldn’t be complete without a stunning pop-up waste. Providing you with a way to drain your water with a practical and easy pop up function, it’s the perfect finishing touch.
The Avi Pop-Up Waste can be installed with an overflow basin. However, if you purchase a non-ABI Interiors basin, the waste hole must be a minimum of 42mm and a maximum of 52mm. For non-overflow basins, a free-flowing waste would be required.
Features:
– PVD (Physical Vapour Deposition)
– Pop Up Function
– Easy installation

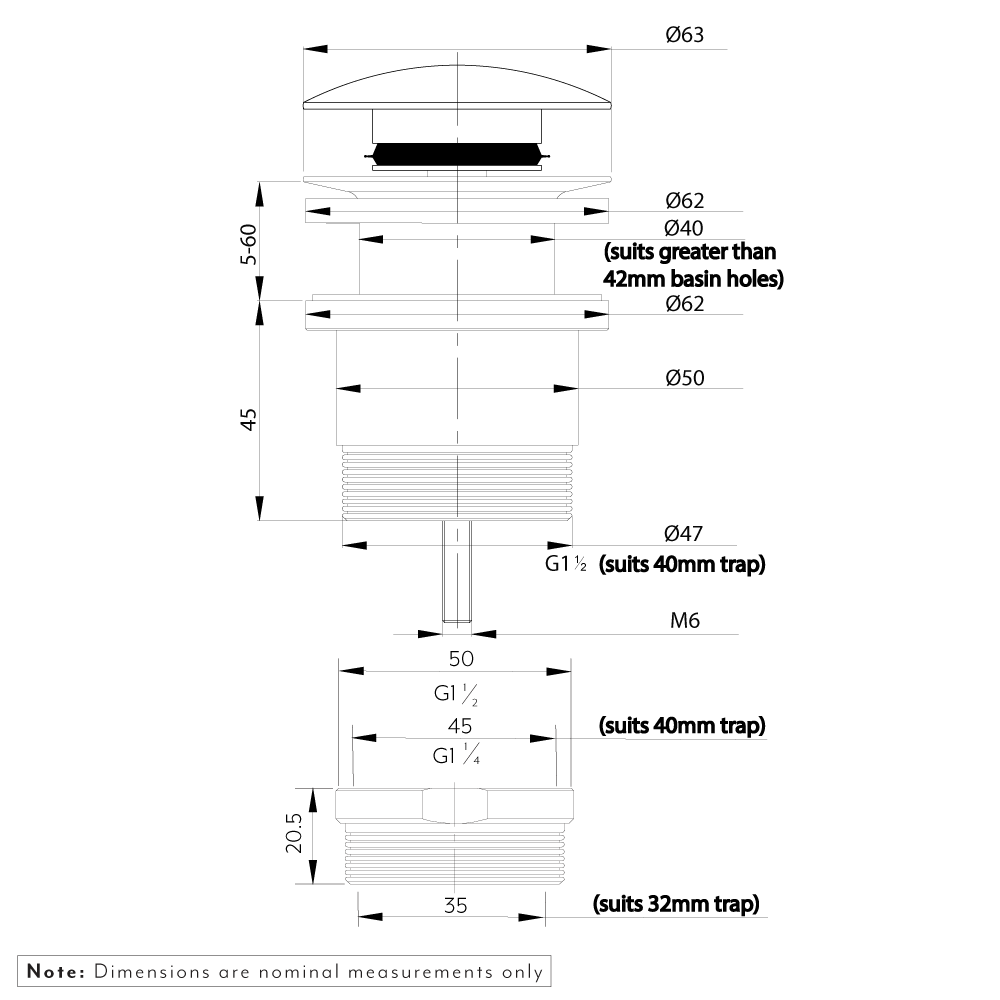

Dimensions:
– Suits 40mm trap
– Minimum waste hole dimension of 42mm
– Maximum waste hole dimension of 52mm
Please note: 32mm trap adaptor provided
Browse our complete range of brushed brass wastes.
Shop Other Colour Options
Shop Other Colour Options
Product Info
| SKU | 14066 |
| Weight | 0.4kg |
| Brand | ABI Interiors |
| Finish/Coating | (PVD) Brushed Brass - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Construction | Solid Brass |
| Dimensions (mm) | Suits 40mm trap and 42mm waste hole |
| Overflow | Yes |
| Warranty | 5 Years Structural Warranty 5 Years Finish Coating Warranty |
| What's In The Box | 1 x Avi Pop-Up Waste 1 x 32mm Trap Adaptor Provided |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Avi Pop-Up Waste - Brushed Brass | 14066 | 5 | 5 | - | 2 | 5 | 1 | - | 1 | - | - | - | - |
Product Documents
| Avi Pop-Up Waste - Specification |  |
Bim Files
| View Product |  |
| View Library | |
Product FAQs
What type of coating is used on this product?
This product uses ABI’s Heat Shield Industrial Grade Electro Colouring System (Physical Vapour Deposition)
PVD (Physical Vapour Deposition) is an industrial-grade molecular-based colouring system which provides a harder, more corrosive resistant finish whilst remaining environmentally friendly.
Does this pop up waste have a over flow?
This Pop Up Waste has overflow and non-overflow function.
How does the plug & waste work?
The waste has a simple push function. Simply press down on the waste to plug the water from draining, and pop up to allow water to drain out. When the waste is pressed down water will not drain out.
What size hole can this waste be used for?
This pop-up waste is designed to fit a hole size of 42mm or greater
