Product Details
Infiniti Technology is all about interchangeable tapware. It has been specifically manufactured to provide the option to have your finish and handle style changed after installation without compromising your existing waterproofing or tiling.
Enabling superb versatility, our Assembly Taps come in three different handle designs, which include the minimalist Barre, the vintage Cross and the smooth rounded single Milani hand mixer.
Please Note:
– You will be required to purchase an In-Wall Breech, as this is sold separately. To purchase a breech, you can follow this link
Includes:
– In-Wall Spindles and Handle Kit
Features:
– Precise Temperature Control
– PSLT (PrimeShield Lacquer Technology)

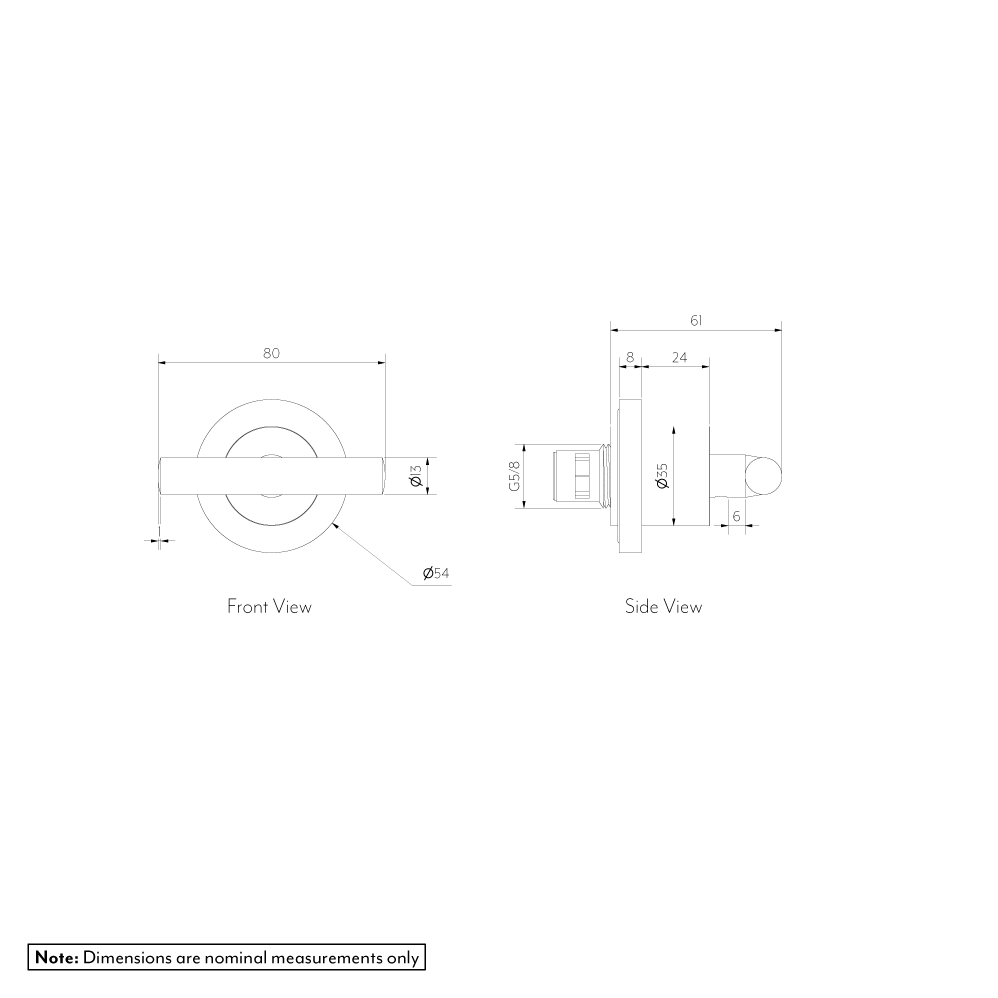

Dimensions:
– Tap Handle Length: 80mm
– Backplate Diameter: 54mm
Browse our complete range of white taps.
Shop Other Colour Options
Shop Other Colour Options
Product Info
Solid Brass
.svg){kind=icon}
PSLT (PrimeShield Lacquer Technology)
Precise Pressure and Temperature Control
| SKU | 13674 |
| Weight | 1.2kg |
| Brand | ABI Interiors |
| Construction | Solid Brass |
| Finish/Coating | White - Semi-Gloss PrimeShield Lacquer Technology |
| Dimensions (mm) | Tap Handle Length: 80mm Backplate Diameter: 54mm |
| What's In The Box | In-Wall Kit (required for rough-in): 2 x Spindles 2 x Locking Nuts Handle Kit (required for fit-off): 2 x Backplates 2 x Sleeves 2 x Handles 2 x Grub Screws 1 x Allen Key |
| Warranty | 25 Years Structural Warranty 2 Years Finish/Coating Warranty 7 Years Cartridge Warranty |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Barre - Assembly Taps - White | 13674 | 25 | 2 | 7 | 2 | 10 | 1 | 5 | 1 | - | - | - | - |
Product Documents
| Barre Assembly Taps - Specification |  |
| Pipe installation | |
| TMV Placement - Specification | |
Bim Files
| View Product |  |
| View Library | |
Product FAQs
Can I swap out my handle design or finish after installation if I change my mind without compromising my tiles or damaging the waterproofing?
Yes, our Infiniti Technology allows the flexibility and the convenience to have your handles swapped out after installation of the rough-in without damaging waterproofing or tiling
Is a breech included with my purchase?
No, a breech is not included with your Assembly Taps purchase
What parts are included with my purchase?
You will receive the following:
In-Wall Kit (required for rough-in):
2 x Spindles
2 x Locking Nuts
Handle Kit (required for fit-off):
2 x Backplates
2 x Sleeves
2 x Handles
2 x Grub Screws
1 x Allen Key
