Product Details

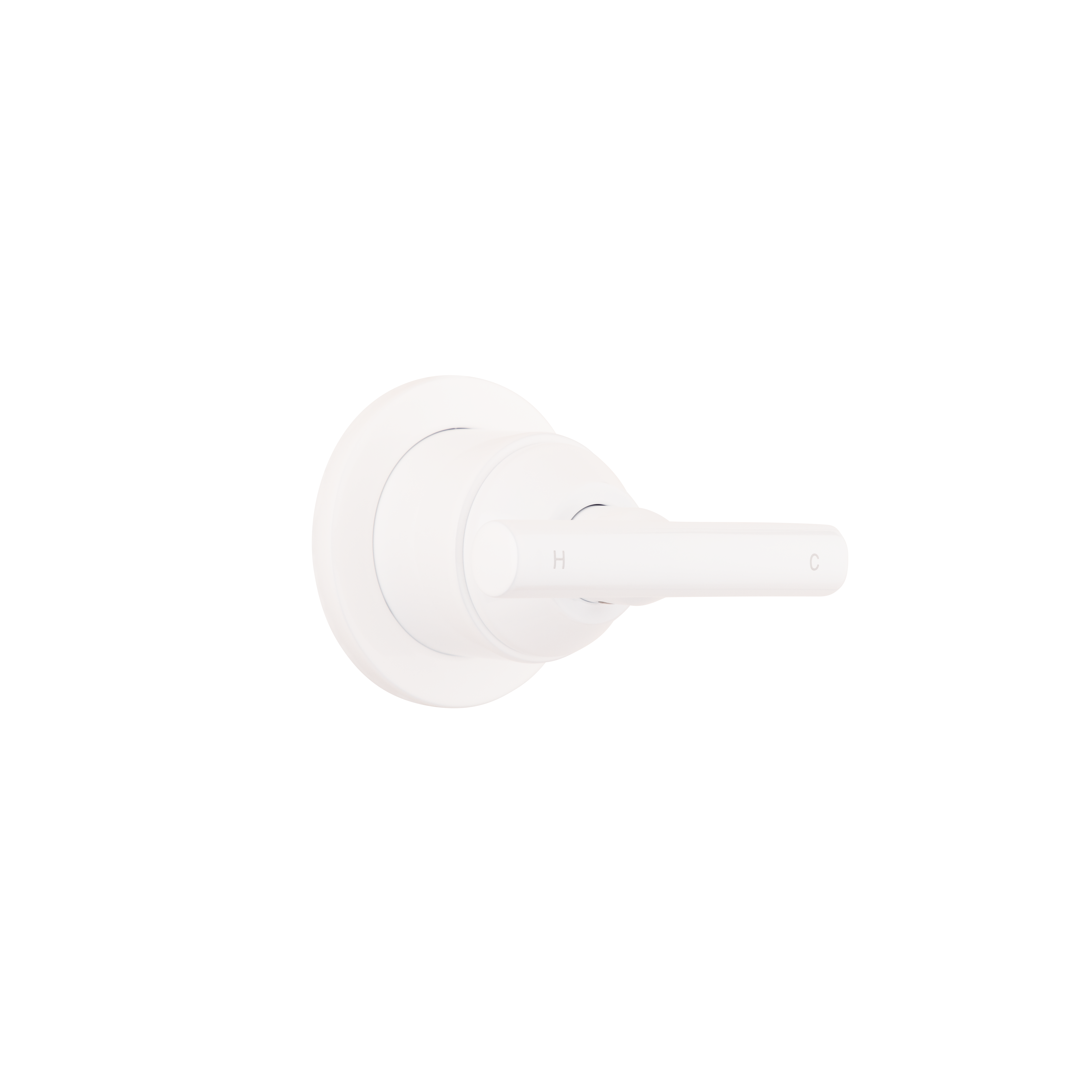

The Barre Progressive Mixer is a single hand mixer that uses progressive cartridge technology. This product allows for precise temperature and pressure by twisting the dial. Twist in a clockwise motion for low-pressure cold up to high pressure cold. Once the dial is turned halfway, warm water is introduced at full pressure.
Please Note: This wall progressive mixer is not thermostatic. Your plumber may be able to install a Thermostatic Mixing Valve (TMV) to enable this functionality. The TMV is installed after the hot supply, providing you with a blended hot temperature that will help prevent scalding if there is a sudden drop in cold supply to the mixer. Installing a TMV is a common installation method in the UK.
Please head to the ‘Product Document’ tab and refer to our TMV Placement document for more information and placement examples.
Browse our complete range of white taps.
Shop Other Colour Options
Shop Other Colour Options
Product Info
Solid Brass
.svg){kind=icon}
PSLT (PrimeShield Lacquer Technology)
Progressive Cartridge Technology
| SKU | 14197 |
| Weight | 1.2kg |
| Brand | ABI Interiors |
| Material | Solid Brass |
| Finish/Coating | White - Semi-Gloss PrimeShield Lacquer Technology |
| Dimensions (mm) | Mixer Handle Length: 80 |
| Features | Progressive Cartridge Technology |
| Warranty | 25 years structural warranty 7 years cartridge warranty 2 years finish/coating warranty |
| ETA |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Barre - Progressive Single Mixer - White | 14197 | 25 | 2 | 7 | 2 | 10 | 1 | 5 | 1 | - | - | - | - |
Product Documents

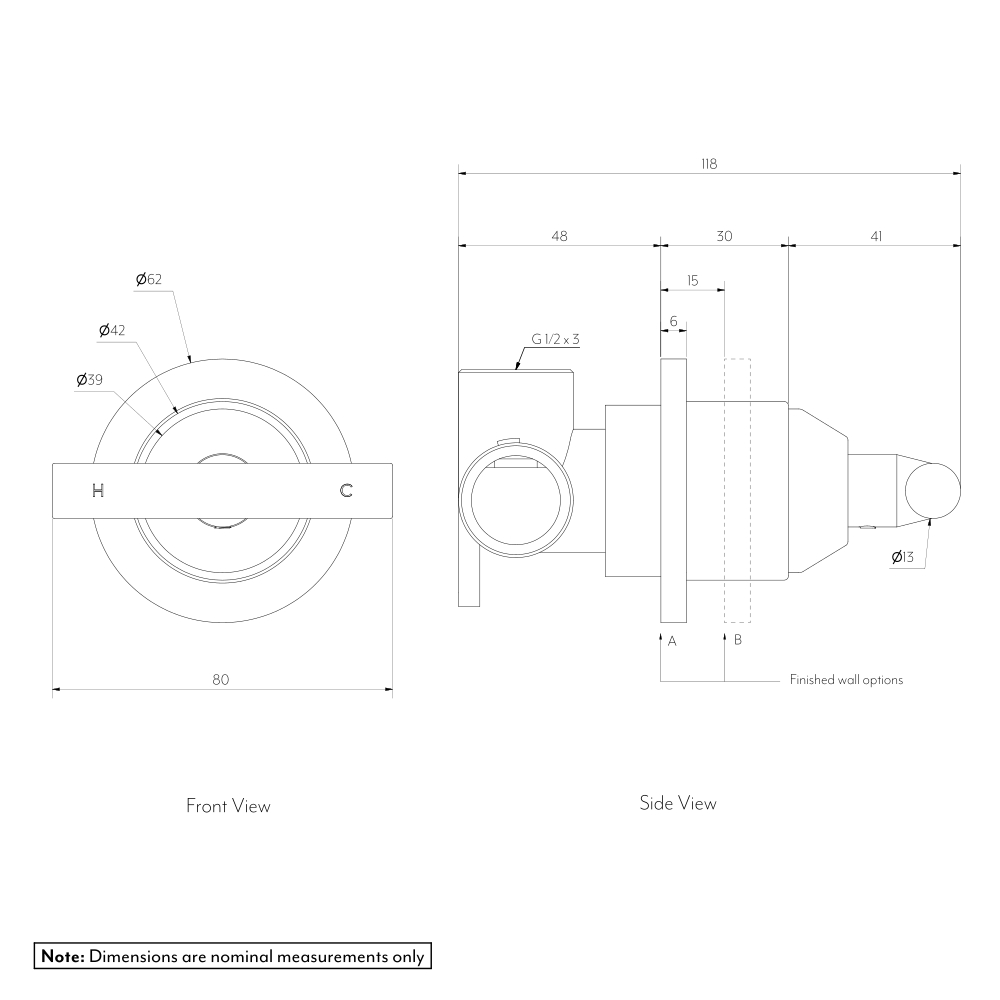

| Barre Progressive Single Mixer - Specification |  |
| TMV Placement - Specification | |
