T39815 | WELS: 5 Star | Litres / min: 6
Product Details
Our Commercial Pull-Out Spray Attachment has been designed to provide greater cleaning convenience in your kitchen or laundry. The attachment is easily screwed directly onto your existing Elysian Commercial Pull-Out Kitchen Mixer to allow for either a concentrated tunnel spray or a dispersed wide-angle spray.
Beautifully seamless in design, the Commercial Pull-Out Spray Attachment will become an essential commodity in the kitchen.
Features:
– 304 Stainless Steel Construction
– Direct tunnel spray or dispersed wide-angle spray functionality
– Easy slide-switch function

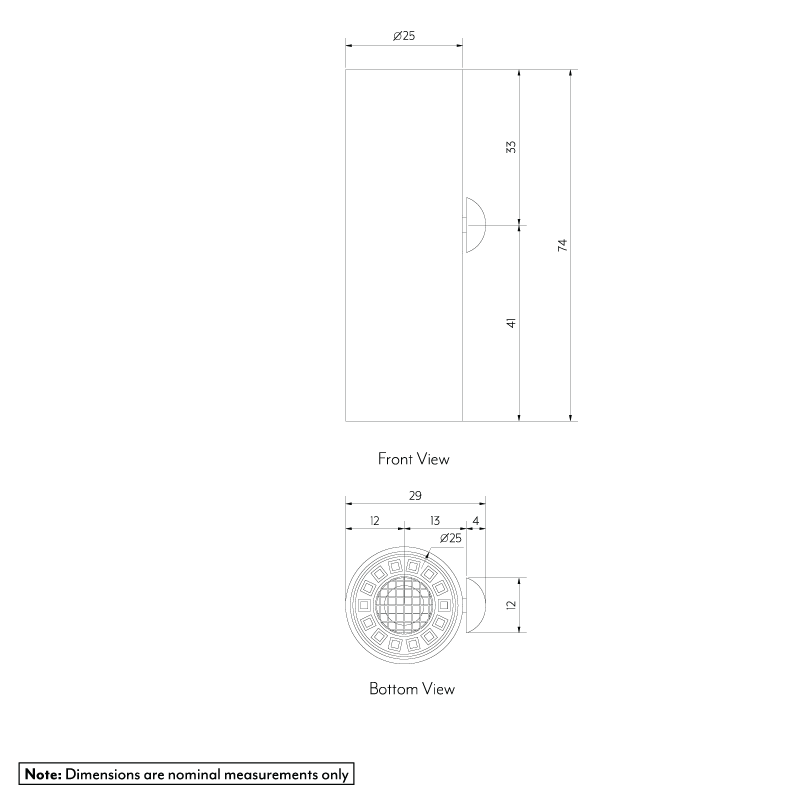

Dimensions:
– Diameter: 25mm
– Length: 74mm
Please Note:
– The Commercial Pull-Out Spray Attachment has been specifically designed for use on our Elysian Commercial Pull-Out Kitchen Mixers and cannot be used on any standard kitchen mixers.
– There may be subtle discrepancies in the finish when paired with our Elysian Commercial Pull-Out Kitchen Mixers.
Browse our complete range of stainless steel tapware.
Shop Other Colour Options
Shop Other Colour Options
Product Info
| SKU | 14405 |
| Weight | 0.110kg |
| Brand | ABI Interiors |
| Construction | 304 Stainless Steel |
| Dimensions | Diameter: 25mm Length: 74mm |
| What's In The Box | 1 x Spray Attachment |
| Warranty | 25 Years Structural Warranty 5 Years Finish/Coating Warranty |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Commercial Pull-Out Spray Attachment - Stainless Steel | 14405 | 25 | 5 | - | 3 | 10 | 1 | - | 1 | - | - | - | - |
5
Water Rating
6
Litres Per Minute
T39815
Registration Number
Product Documents
| Commercial Pull Out Spray Attachment - Specification |  |
Bim Files
| View Library |  |
Product FAQs
Can the Commercial Pull-Out Spray Attachment be used with any of your kitchen mixers?
The Commercial Pull-Out Spray Attachment has been specifically designed for use on our Elysian Commercial Pull-Out Kitchen Mixers. They cannot be used on any standard kitchen mixers.
How do I Install the spray attachment onto my existing pull-out mixer?
The attachment can be easily screwed directly onto your existing Elysian Commercial Pull-Out Kitchen Mixer. Simply unloosen and remove the existing nozzle and replace it with your new attachment.
How do I adjust between the two different spray functions?
Locate the switch on the side of the nozzle. For a dispersed wide angle spray push down on the switch. To return to the concentrate tunnel spray, push the slide switch up.
What is the minimum KPA before the wide spray option deactivates?
Please refer to the product specification document. The recommended minimum working pressure is 150 KPA and the maximum working pressure is 500 KPA
