Product Details
Infiniti Technology is all about interchangeable tapware. It has been specifically manufactured to provide the option to have your finish and handle style changed after installation without compromising your existing waterproofing or tiling.
Providing superb versatility, the Progressive mixer comes in three different handle designs, which include the minimalist Barre, the vintage Cross and the smooth rounded single Milani hand mixer.
Progressive ensures ease of operation for the user with precise temperature control at a twist of the dial. When using progressive cartridge technology you twist in one clockwise motion starting at low-pressure cold up to high pressure cold. Once turned halfway warm water is introduced at full pressure. The dial is then precisely adjustable for the perfect temperature right up to maximum temperature when fully turned.
Unifying your Mixer and Spout set with a neat and clean finish is our Rounded Rectangle Backplate. With it’s sleek profile, the backplate brings a distinct and sophisticated look.
Includes:
– In-Wall Body and Handle Kit
– Wall-Mounted Spout
– Backplate
Features:
– Progressive Cartridge Technology
– Precise Temperature Control
– PVD (Physical Vapour Deposition)
A Flow Valve Insert – Non-Restricting is available to be installed inside our Spouts (26 L/M at 500KPA).
Browse our complete range of brushed nickel tapware.
Shop Other Colour Options
Shop Other Colour Options
Product Info
Solid Brass
.svg){kind=icon}
PVD (Physical Vapour Deposition)
Progressive Cartridge Technology
| SKU | 13923 |
| Weight | 2.05kg |
| Brand | ABI Interiors |
| Finish/Coating | (PVD) Brushed Nickel - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Construction | Solid Brass |
| Backplate Dimensions (mm) | Backplate Dimensions: 180mm x 60mm x 6mm Set-out Distance: 108mm centre to centre |
| Spout Dimensions (mm) | Reach: 200mm |
| Mixer Dimensions (mm) | Handle Diameter: 70mm |
| What's In The Box | In-Wall Kit (required for rough-in): Body + Fixing Screws Locking Nut Ceramic Cartridge Spout / Handle Kit / Backplate (required for fit-off): 1 x Short Sleeve (15mm) 1 x Long Sleeve (30mm) 1 x Dome 1 x Handle 1 x Allen Key 1 x Backplate 1 x Spout |
| Warranty | 25 Years Structural Warranty 7 Years Cartridge Warranty 5 Years Finish/Coating Warranty |
| ETA |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |

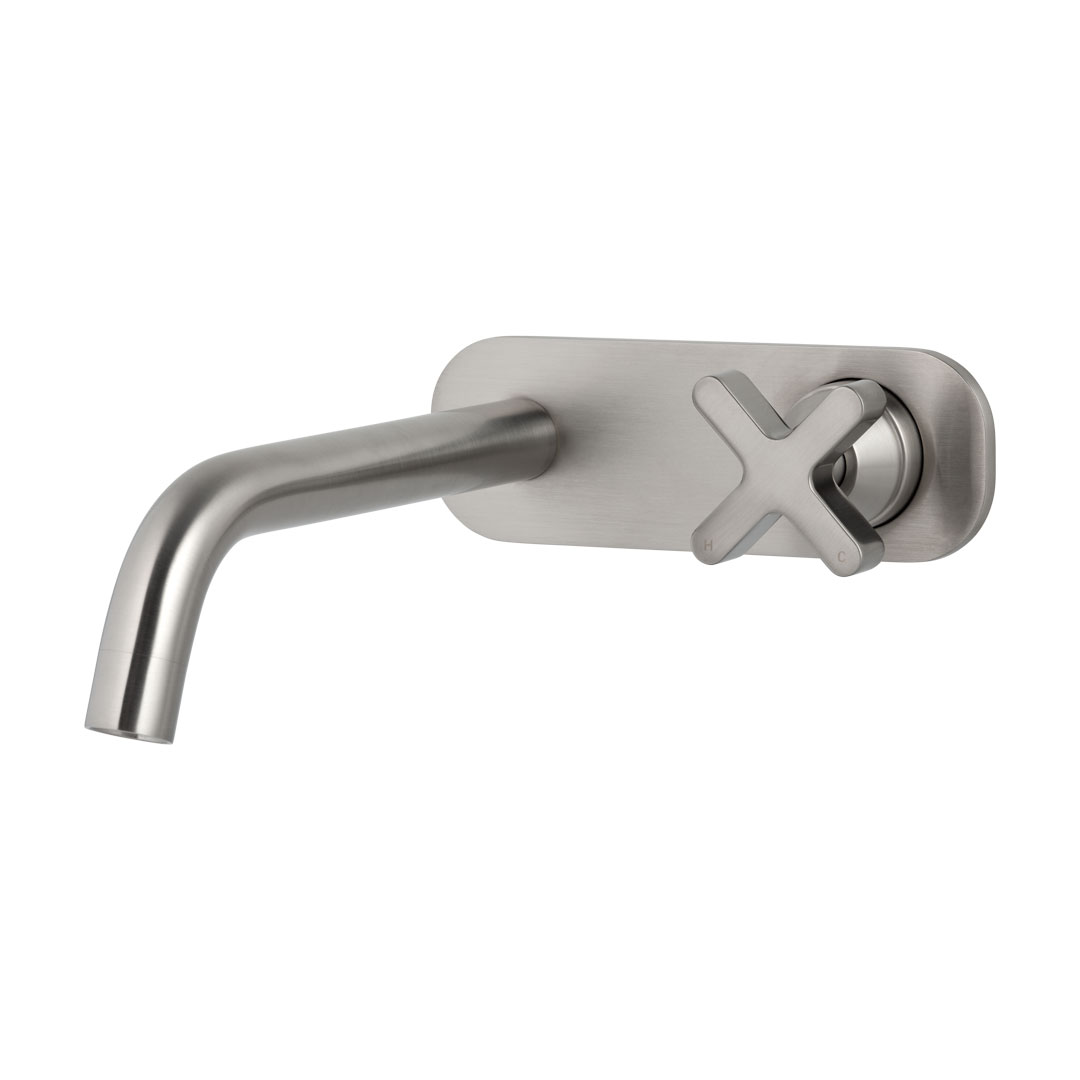

| Cross Progressive Wall-Mounted Set - Brushed Nickel | 13923 | 25 | 5 | 7 | 2 | 10 | 1 | 5 | 1 | - | - | - | - |
Product Documents
| Cross Progressive Wall-Mounted Set - Specification |  |
| Pipe installation | |
| TMV Placement - Specification | |
Bim Files
| View Product |  |
| View Library | |
Product FAQs
Can I swap out my handle design or finish after installation if I change my mind without compromising my tiles or damaging the waterproofing?
Yes, our Infiniti Technology allows the flexibility and the convenience to have your handles swapped out after installation of the rough-in without damaging waterproofing or tiling.
How do I determine which sleeve length is appropriate for my fitting?
The sleeve length you select for your in-wall component is determined by the depth and thickness of your wall.
What parts are included with my purchase?
You will receive the following:
In-Wall Kit (required for rough-in):
Body + Fixing Screws
Locking Nut
Ceramic Cartridge
Spout / Handle Kit / Backplate (required for fit-off):
1 x Short Sleeve (15mm)
1 x Long Sleeve (30mm)
1 x Dome
1 x Handle
1 x Allen Key
1 x Backplate
1 x Spout
