Product Details
Infiniti Technology is all about interchangeable tapware. It has been specifically manufactured to provide the option to have your finish and handle style changed after installation without compromising your existing waterproofing or tiling.

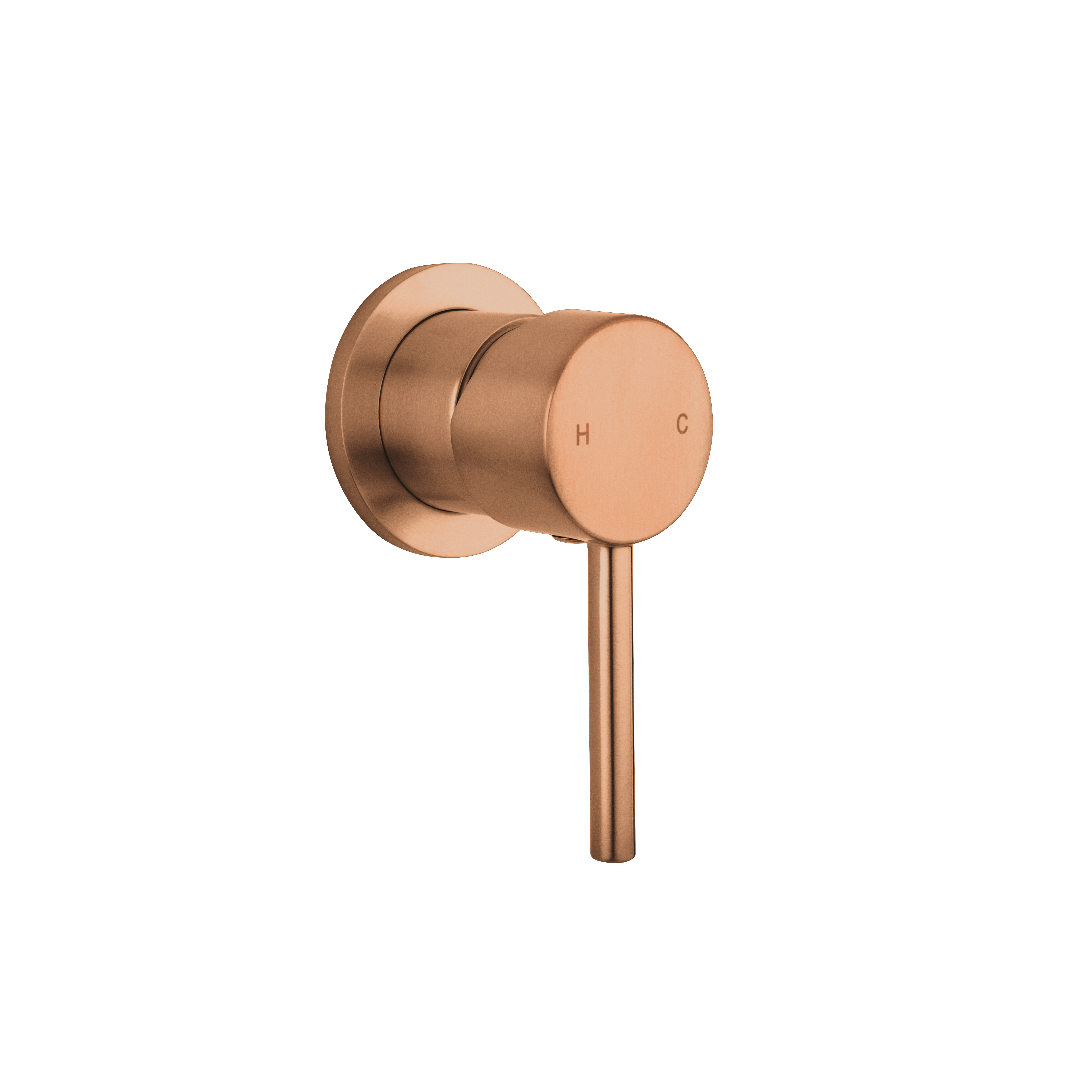

Enabling superb versatility, The Elysian Minimal uses innovative ceramic cartridge technology. The mixer’s smooth, sophisticated design incorporates precise temperature and pressure control that’ll help enhance the functionality of your bathroom space.
Please Note:
– This wall mixer is not thermostatic. Your plumber may be able to install a Thermostatic Mixing Valve (TMV) to enable this functionality. The TMV is installed after the hot supply, providing you with a blended hot temperature that will help prevent scalding if there is a sudden drop in cold supply to the mixer. Installing a TMV is a common installation method in the UK.
Please head to the ‘Downloads’ tab and under ‘Product Documents’ refer to our TMV Placement document for more information and placement examples.
If you are looking for a thermostatic alternative, please refer to our Eden Thermostatic Shower Rail Set: here
Includes:
– In-Wall Body
– Handle Kit
– Two handle kit sleeve options
Features:
– Precise Temperature Control
– Precise Pressure Control
– PVD (Physical Vapour Deposition)
Dimensions:
– Mixer Handle Length: 110mm
– Mixer Handle Diameter: 45mm
– Backplate Diameter: 62mm
Browse our complete range of brushed copper taps.
Shop Other Colour Options
Shop Other Colour Options
Product Info
| SKU | 13690 |
| Weight | 0.9kg |
| Brand | ABI Interiors |
| Finish / Coating | (PVD) Brushed Copper - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Construction | Solid Brass |
| Dimensions (mm) | Mixer Handle Length: 110mm Mixer Handle Diameter: 45mm Backplate Diameter: 62mm |
| What's In The Box | In-Wall Kit (required for rough-in): 1 x Body 2 x Fixing Screw 1 x Ceramic Cartridge 1 x Locking Nut Handle Kit (required for fit-off): 1 x Short (15mm) Sleeve 1 x Long (30mm) Sleeve 1 x Dome 1 x Backplate 1 x Handle 1 x Grub Screw 1 x Grub Screw Cap 1 x Allen Key |
| ETA |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Elysian Minimal Mixer - Brushed Copper | 13690 | 25 | 5 | 7 | 2 | 10 | 1 | 5 | 1 | - | - | - | - |
Product Documents
| Elysian Minimal Mixer - Specification |  |
| TMV Placement - Specification | |
Bim Files
| View Product |  |
| View Collection | |
| View Library | |
Product FAQs
Can I swap out my handle design or finish after installation if I change my mind without compromising my tiles or damaging the waterproofing?
Yes, our Infiniti Technology allows the flexibility and the convenience to have your handles swapped out after installation of the rough-in without damaging waterproofing or tiling.
How do I determine which sleeve length is appropriate for my fitting?
The sleeve length you select for your in-wall component is determined by the depth and thickness of your wall.
What parts are included with my purchase?
You will receive the following:
In-Wall Kit (required for rough-in):
1 x Body
2 x Fixing Screw
1 x Ceramic Cartridge
1 x Locking Nut
Handle Kit (required for fit-off):
1 x Short (15mm) Sleeve
1 x Long (30mm) Sleeve
1 x Dome
1 x Backplate
1 x Handle
1 x Grub Screw
1 x Grub Screw Cap
1 x Allen Key
