Product Details

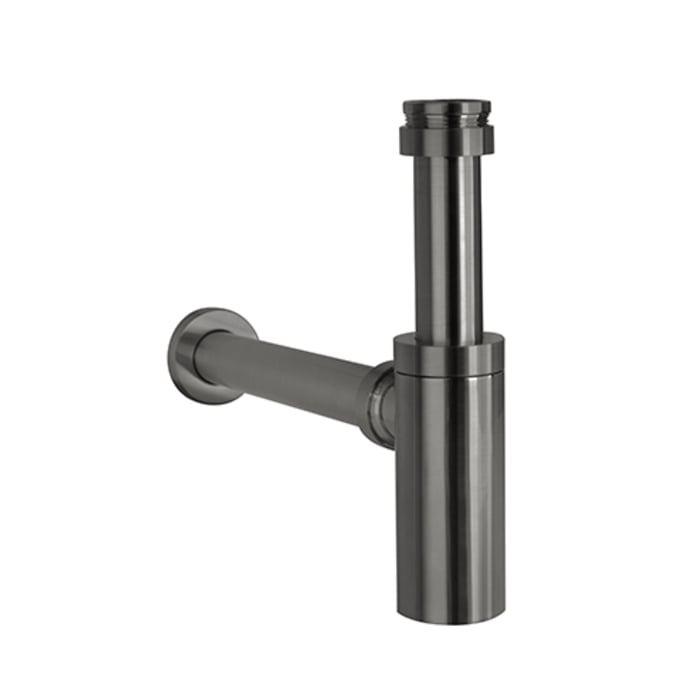

The Marli Round Bottle Trap is a minimalistic and plumber-friendly bathroom fixture. With an adjustable height and depth, Marli ensures that any on-site differences can be easily accounted for.
Marli is easy to install and has a standard thread size. Its piping is cut to size depending on setbacks from the wall or height from the basin sink. This ensures an effortless installation process for your tradesperson during the set-out stage.
Please Note:
– This product is compatible with our Avi Pop-Up Wastes (sold separately).
Features:
– Standard thread size ensures compatibility with a wide range of basins.
– Adjustable horizontal and vertical piping for easy installation.
– Elegant design maintains the aesthetic appeal of your bathroom.

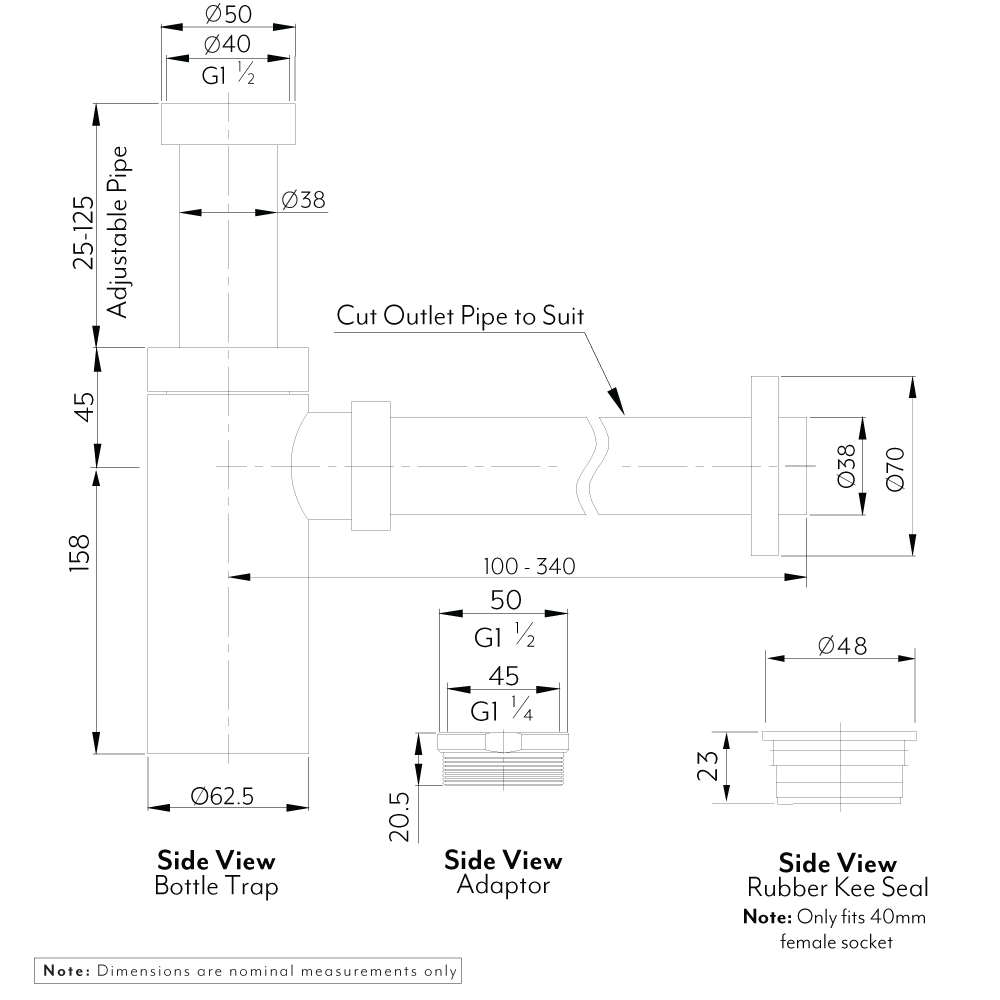

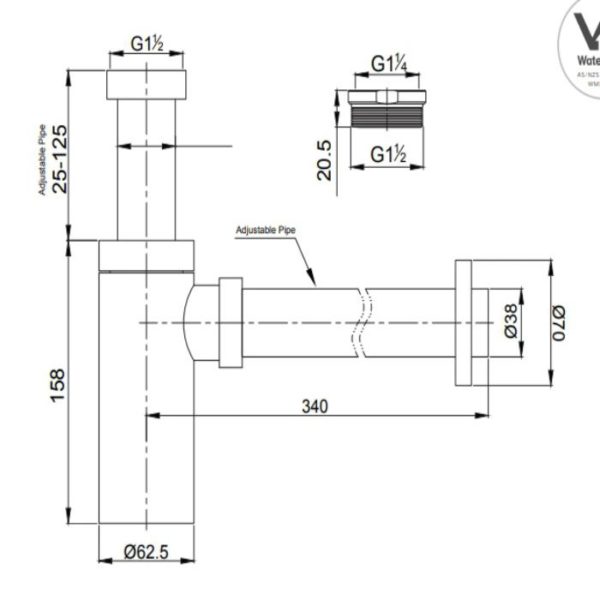

Dimensions:
– Bottle trap diameter: 62.5mm
Shop Other Colour Options
Shop Other Colour Options
Product Info
Solid Brass
.svg){kind=icon}
PVD (Physical Vapour Deposition)
Ease of Cleaning
| SKU | 11892 |
| Weight | 1.5kg |
| Brand | ABI Interiors |
| Construction | Solid Brass |
| Finish/Coating | (PVD) Brushed Gunmetal - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Dimensions (mm) | Bottle Trap Diameter: 62.5mm |
| Adjustable | Yes |
| What's In The Box | 1 x Kee Seal 1 x Wall Flange 1 x Outlet Pipe 1 x 40mm Adaptor 1 x Bottle Trap |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Marli Bottle Trap Round - Brushed Gunmetal | 11892 | 10 | 5 | - | 2 | 5 | 1 | - | 1 | - | - | - | - |
Product Documents
| Marli Bottle Trap Round - Specification |  |
Bim Files
| View Product |  |
| View Library | |
Product FAQs
What type of coating is used on this product, is it durable?
ABI’s Heat Shield – Industrial Grade PVD Electro Colouring System (PVD) - Physical Vapour Deposition - This is an extremely durable coating, far superior to a powdercoated coating.
Can this product be used externally / outside?
ABI's warranty does not cover external use due to the coatings being put under much harsher conditions and UV light. However the structural integirty of the bottle trap would be fine.
