Product Details

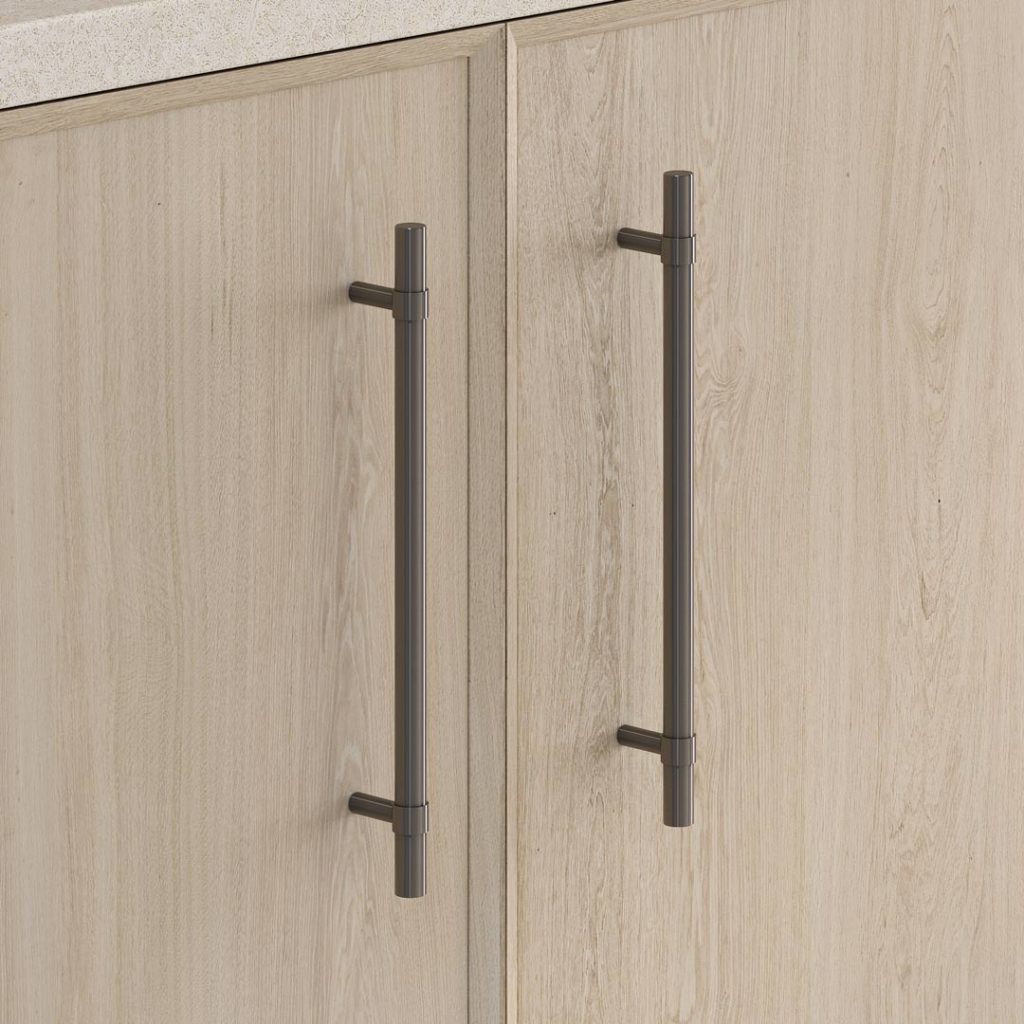

Sometimes you want the freedom to retain your existing cabinetry and replace the handles without creating new fixing holes. Our innovative Modi Adjustable Cabinetry Pull is designed for flexibility, helping refresh the look of your existing cabinetry with fully adjustable fixing points.
With a solid brass construction, this easy-to-use product is suitable for both retrofitting or new installations.
Please note:
–This product is designed to work with existing cabinetry, however, holes cannot be larger than 6mm.
Features:
– Solid brass construction
– Fully adjustable (can be set to suit many widths)
– Easy to use (no power tools required for retro fits)
– Fits all cabinetry (up to 40mm in thickness)
Dimensions:
– Length: 250mm
– Projection: 36mm
– Handle Diameter: 12mm
Shop Other Colour Options
Shop Other Colour Options
Product Info
| SKU | 14720 |
| Weight | 0.270kg |
| Brand | ABI Interiors |
| Finish/Coating | (PVD) Brushed Gunmetal - ABI’s Heat Shield – Industrial Grade Electro Colouring System (Physical Vapour Deposition) |
| Construction | Solid Brass |
| Dimensions | Length: 250mm Projection: 36mm Handle Diameter: 12mm |
| Hole Distance | 10 - 235 mm (centre to centre) |
| Hardware | Mounting hardware included |
| What's In The Box | 1 x Handle 2 x Collars 2 x Grub screws 2 x Fixing screws (Snap-off’s) |
| Warranty | 10 Years Structural Warranty 1 Year Finish/Coating Warranty |
| ETA |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Modi Adjustable Cabinetry Pull 250mm - Brushed Gunmetal | 14720 | 10 | 1 | - | 1 | 5 | 1 | - | 1 | - | - | - | - |
Product Documents
| Modi Adjustable Cabinetry Pull 250mm - Specification |  |
Bim Files
| View Product |  |
| View Library | |
Product FAQs
How does the Modi Adjustable Cabinetry Pull function?
The collars are fully adjustable and allow the fixing points to be moved
along the Handle, we recommend anywhere between 100 - 220mm spacing.
Can the 250mm Modi Adjustable Cabinetry Pull work with my existing fixing holes even though they are outside the recommended range of 100 - 220mm?
Yes, the 250mm Pull can work with any distance up to 240mm. However, please be advised that this is only an aesthetic recommendation.
What are the two holes in the handle for?
These are guide markings that indicate the recommended spacing.
If my carpenter would like to purchase his own fixing bolts what size would be suitable?
We recommend using M4 x 0.7 pitch fixing bolts.
How should I clean this product?
We recommend cleaning with soap and water or a mild liquid detergent. For comprehensive cleaning instructions, please refer to our Care Guide Here
What's in the box?
1 x Handle
2 x Collars
2 x Grub screws
2 x Fixing screws (Snap-off’s)
Can the Modi Cabinetry Pulls be used on integrated appliances?
Yes, however we recommend that you initially confirm with your trades before integration.
