Product Details

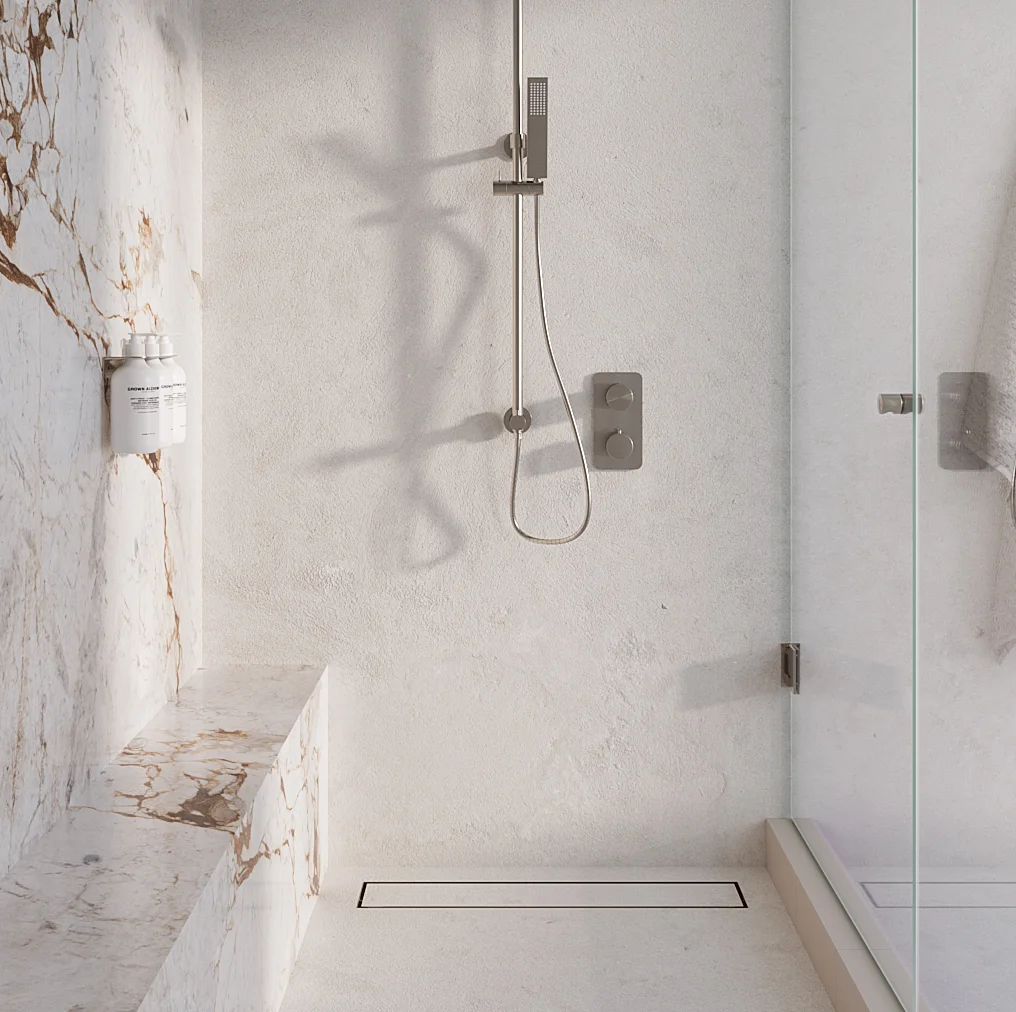

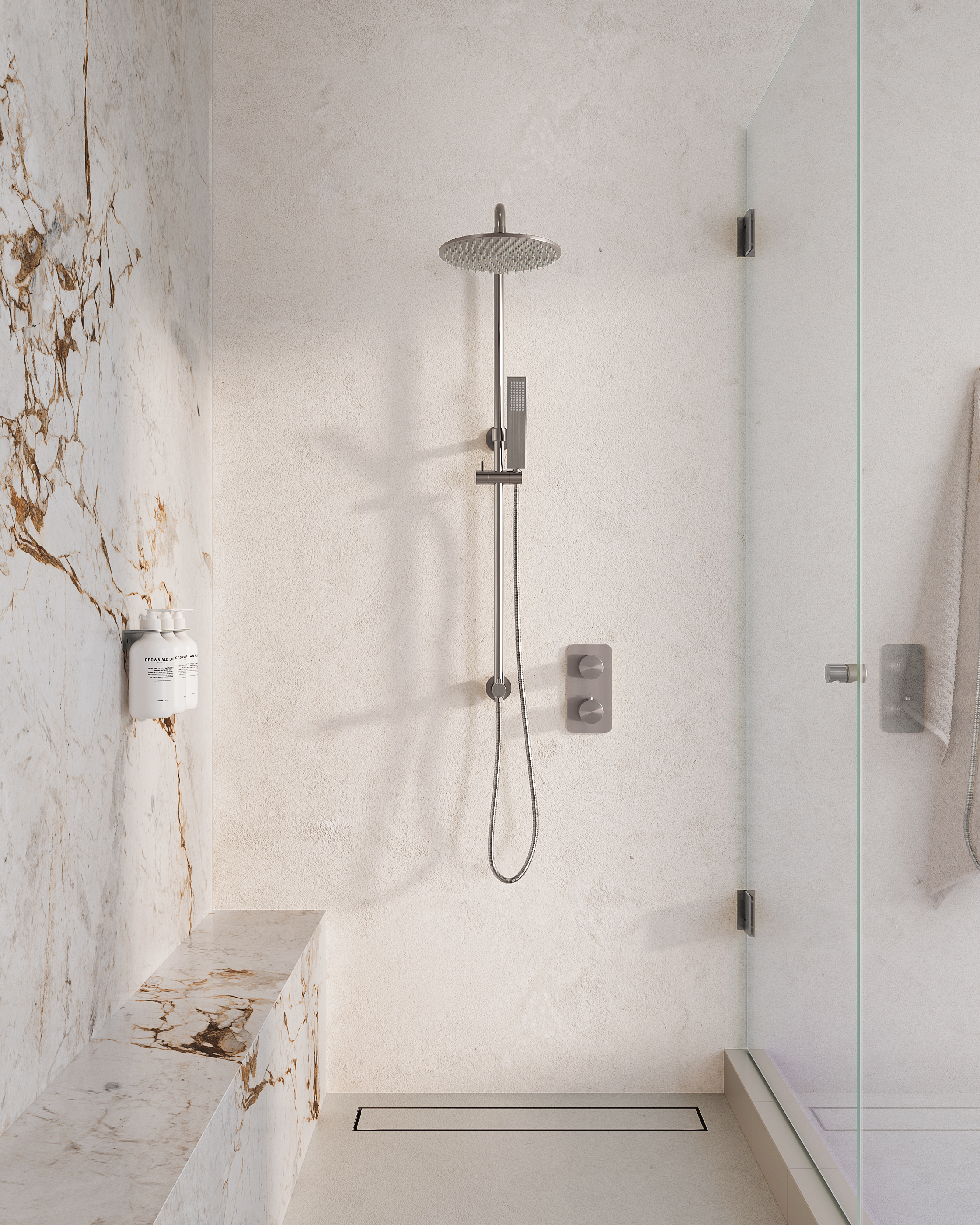

The Pixi Tile Insert Shower Channel Waste 800mm is a contemporary drainage fixture that seamlessly blends into your surrounding tiles for a discreet, effortless look.
Constructed from durable 304 stainless steel and coloured with our industrial-grade PVD electro-colouring system, this tile floor waste features an adjustable tray design in order to accommodate a range of tile thicknesses.
Please Note:
– The tile insert is suitable for tiles between 8-20mm.
– This shower channel works best with a 90mm floor waste trap.
– An experienced licenced plumber must install this shower channel at the rough-in stage, complying with local regulations.
– The installation guide must be referred to before installation to maintain the warranty.
Features :
– 304 lead-free stainless steel construction offers durability for indoor and commercial use.
– Adjustable tray to suit most tile thicknesses.
– A reversible top tray that offers the option to select between the steel face or tile-insert side.
– 360-degree rotation for workbench convenience.
– Adjustable feet for additional support.
Dimensions:
– Length: 800mm
– Width: 170mm
– Height 95mm
– Hole Size: 30-35mm
Tile Insert Dimensions:
– Length: 735mm
– Width: 105mm
– Height 15mm
Browse our complete range of stainless steel shower wastes.
Shop Other Colour Options
Shop Other Colour Options
Product Info
304 Stainless Steel
Ease of Installation
Adjustable Height
| SKU | 16431 |
| Weight | 4.8kg |
| Brand | ABI Interiors |
| Finish/Coating | Brushed Brass - ABI's Heat Shield – Industrial grade PVD electro colouring system (Tile is inserted after installation leaving only the rims visible) |
| Construction | 304 Stainless Steel |
| Dimensions (mm) | – Length: 800mm – Width: 170mm – Height 95mm – Hole Size: 30-35mm Tile Insert Dimensions: – Length: 735mm – Width: 105mm – Height 15mm |
| What's In The Box | 1 x Base trey 1 x Adjustable trey 1 x Top trey (can be flipped to be a tile insert) 8 x Soft tip grub screws M12 10 x Timber fixing screws 1 x Top trey removal key 1 x Allan Key |
Specification guides can be found under the Downloads tab.
| PRODUCT DESCRIPTION | RESIDENTIAL WARRANTY | NON-RESIDENTIAL WARRANTY | OUTDOOR WARRANTY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name & Finish | SKU | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other | Structure | Finish | Cartridge | Other |
| Pixi Tile Insert Shower Channel Waste 900mm - Stainless Steel | 10463 | 10 | 5 | - | 2 | 5 | 1 | - | 1 | - | - | - | - |
Product Documents
| Pixi Tile Insert Shower Channel Waste 800mm - Specification |  |
Bim Files
| View Library |  |
Product FAQs
What type of coating is used on this product, is it durable?
ABI's Heat Shield – Industrial grade PVD electro colouring system - This is the most durable finish available on the market, the same process is used to strengthen the end of drill bits.
Can this product be used externally?
We don’t currently have a warranty that covers external use however due to its stainless steel construction it would be our most suitable product for exterior use. The PVD coating would be more susceptible to damage however the structural integrity of the floor waste will be fine.
What range of tile thicknesses is possible with this waste?
The Pixi Tile Insert Channel Waste can accommodate tiles between 8mm-20mm thick (inc. adhesives/ waterproofing layers). Please refer to the installation guide, as this figure differs between installation types.
What's in the box?
1 x Base trey
1 x Adjustable trey
1 x Top trey (can be flipped to be a tile insert)
8 x Soft tip grub screws M12
10 x Timber fixing screws
1 x Top trey removal key
1 x Allan Key
What range can the waste height be adjusted to?
The Pixi Tile Insert Channel Waste height can be adjusted between 70mm – 150mm. Please refer to the spec drawing for further information.
What is the best way to clean the Pixi Tile Insert Channel Waste?
To clean your waste, use the ‘top tray removal key’ to remove the top tray and clean out any hair or soap residue. Wipe down with a mild liquid detergent or soap and water.
